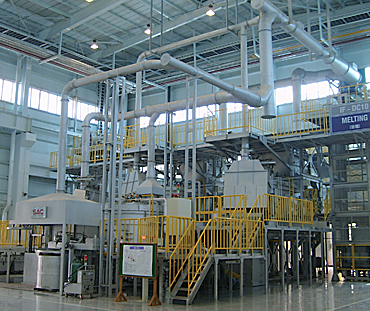

Al Melting Furnace
Application
- Al and Al alloy meting
- Al ingot and return Scrap dissolved
Specification
- Capacity : Max 4Ton/hr
- Temperature : Max 800 ℃
- Heating source : Gas & Oil burner
- Combustion control : PID-OFF contro
Advantages
- Energy saving
- High durability(Refractory)
- Less of splashing & oxidation loss
- Effective preheating by level sensor
- Easy maintenance
 |
MM-500 | MM-1000 | MM-1500 | |
|---|---|---|---|---|
| Capacity (kg/hr) |
Melting | 500 | 1,000 | 1,500 |
| Holding | 1,500 | 2,500 | 3,000 | |

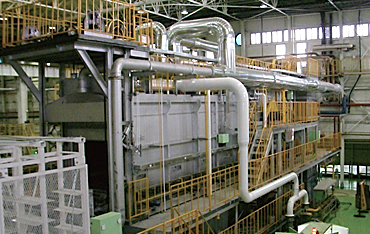

Al-Heat Treatment Furnace
APPLICCATION
- Heat treatment : T-2 ~ T-7
- Treatment material : Automobile parts etc.
Specification
- Capacity : Max 3Ton/hr
- Temperature : Max 550℃
- Temperature uniformity : ± 5 ℃
- Heating source : Gas & Oil burner, Heater
- Control : PID-OFF, SCR-PID Control
Advantages
- Multi-purpose
- Full automation system
- More energy saving
- Production of high quality products
- High productivity
